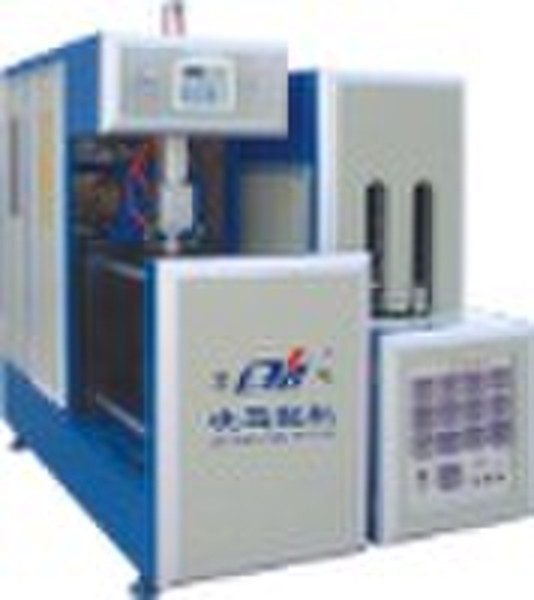

Semi-automatic PET Blowing Machine

lingma plastic blow moulding machine, semi-auto pet blow moulding machine. 1)Germany FESTO electric valve and cylinder, HF-transducer, special computer for bottle blowing machine, booster for infrared only 2)Specifications Blowing mould machine: Clamping force: 220kN Max. mould thickness: 350mm Production capacity: 80-100pcs Allowed mold thickness: 208-400mm Max. bottle volume: 20L Allowed mold width: 450mm Working air pressure of mainframe: 1.0MPa Size of main frame (L x W x H): 2,100 x 740 x 2,000mm Blowing air pressure: 2.0-3.0MPa Size of oven (L x W x H): 2,660 x 650 x 1,660mm Heating power: 12kW Weight: 11,200kg Max. stretch length: 550mm Voltage (3-phase) (1-phase): 380/220/110V Infra-red heater: Voltage: 380V Electromotor power: 1,055kW Lamp length: 900mm Max. length of heating bottle flan: 100mm Max. length of heating pipe flan: 480mm Weight: 0.37MT Size of main frame: 2,240 x 670 x 1,720mm plastic blow moulding machine, semi-auto blow moulding machine with good quality.
